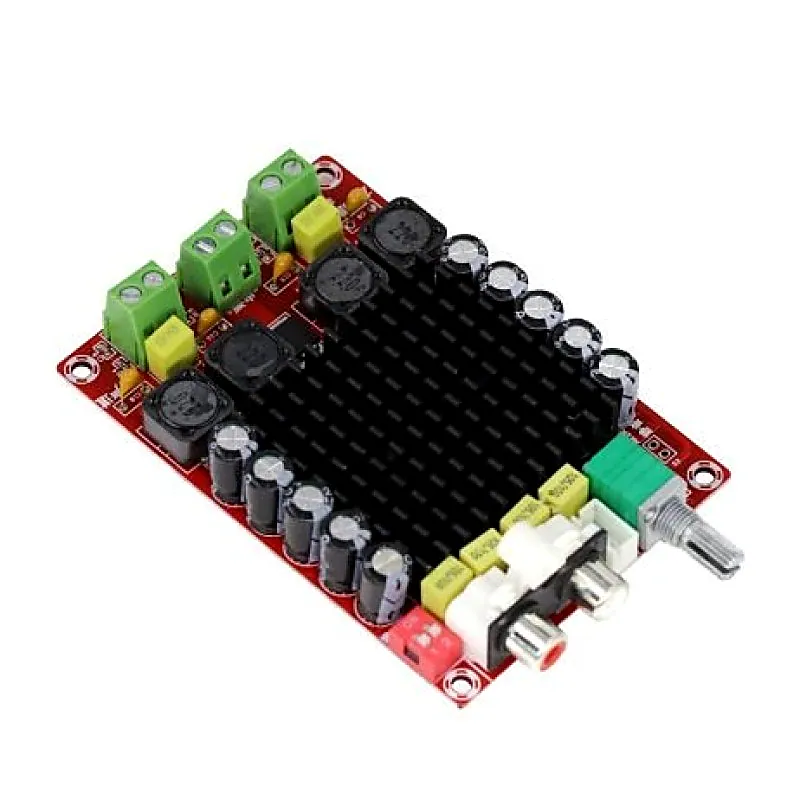

XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board
XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board
This amplifier comes with 4 different levels of gain adjustment (21.6dB,27.6dB,31.1dB,33.1dB) to choose the best-suited gain output to your speakers. The module has two stereo channel output with 100w output per channel. It uses differential input to reduce common-mode noise significantly and additi
+ 18% GST (added at checkout)
In stock — 8 units ready
- Dynamic Operating Voltage: DC 14-32 Volt
- Powerful 200-watt output
- Easy Plug and Play operation
- Intelligent Overcurrent and overheating protection function.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This amplifier comes with 4 different levels of gain adjustment (21.6dB,27.6dB,31.1dB,33.1dB) to choose the best-suited gain output to your speakers. The module has two stereo channel output with 100w output per channel. It uses differential input to reduce common-mode noise significantly and additionally it has the pattern of the fault and silent mode With intelligent protection function and overheating protection function. Features: Dynamic Operating Voltage: DC 14-32 Volt Powerful 200-watt output Easy Plug and Play operation Intelligent Overcurrent and overheating protection function. Package Include: 1 x XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board Specifications: Model XH-M510 TDA7498 Input Voltage Range (VDC) 15 ~ 32 Output power 100W+100W Output impedance 4-8 Ω Amplifier Type Class D Harmonic Distortion Po=1W/0.05% Frequency Response Range 18-100KHz Switching Frequency 360KHz Signal to noise ratio 110 dB Length (mm) 96 Width (mm) 70 Height (mm) 15 Weight (gm) 90
