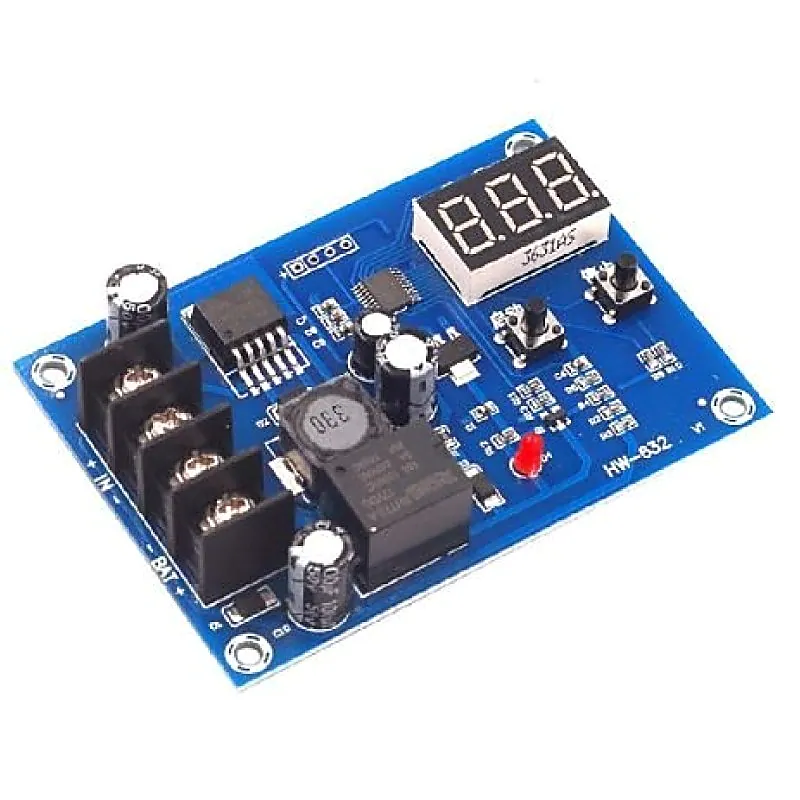

XH-M603 HW-632 Charging Control Module With LED Display

XH-M603 HW-632 Charging Control Module is a 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display. It is used in variety of applications. Application Fields: 12-24V storage battery. It is applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydrid batteries, lithium-ion batteries, polymer batteries, Car battery, electric car battery Using method: 1. Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash: you can start or stop button to set starting up charge voltage value. 2. Set Stop Voltage: in normal display voltage state, press the button will display stopping charge voltage; long-press the button for 3s the digital tube will flash; you can start or stop button to set stopping charge voltage value. 3. Factory Reset: in power-on state press the start/stop button at the same time, a digital tube will display 888; that represents factory reset settings. Note: This Product is available in two different variant(XH-M603 and Hw-632) with same working, we will ship it randomly. Features: Automatic control circuit connection Automatic charging and power off Real-time voltage monitor Autosave setting ST core chip LM2596 switch voltage regulator Package Includes: 1 x XH-M603 HW-632 Charging Control Module With LED Display Specifications: Model XH-M603 / HW-632 Input Voltage DC 10-30V Display Precision 0.1V Control Precision 0.1V Output Type direct output Voltage Tolerance ± 0.1V Dimension(mm) 82 x 58 x 18
