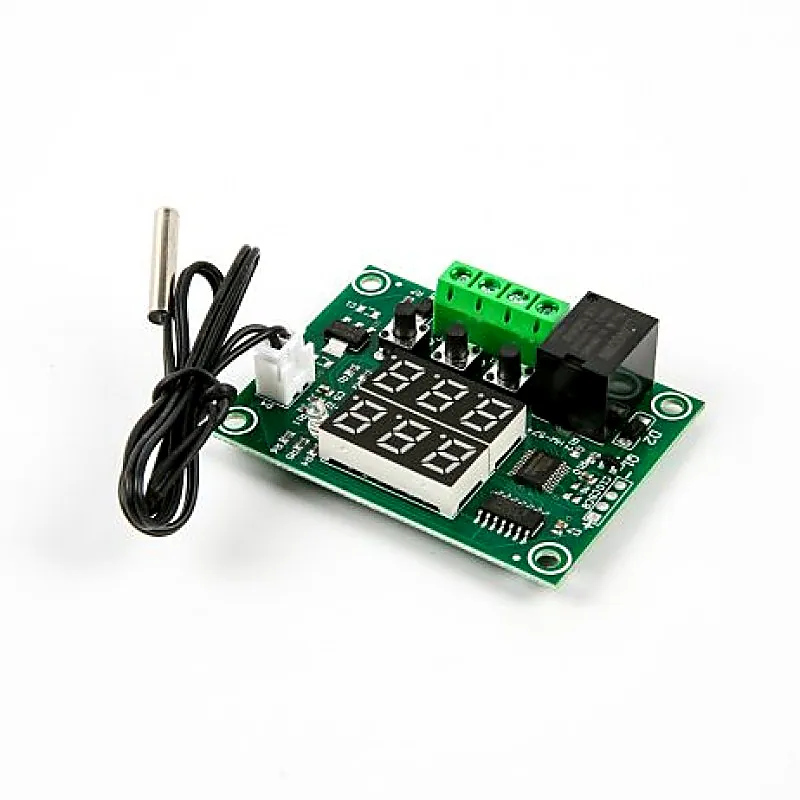

XH-W1219 12V Digital Red and Green Display Temperature Controller Module with NTC Waterproof Temperature Sensor

This is XH-W1219 12V Digital Red+Green Display Temperature Controller Module W/ NTC Waterproof Temperature Sensor. The XH-W1219 thermostat module with its C and I/O (sensor input, keys, double display, relay) can be re-programmed for automation tasks, and its easy to work with. Digital thermostat module. The temperature controller/switch with waterproof NTC probe and integrated LED display in red and green. Note: This board is Nuvoton based. Button Functions : P0 ( Temperature Control Mode ) When first use this product; if you are using it for heating, please set H, if using it for cooling, please set C P1 ( Return Difference Setting ) Long press SET key entering into the internal setting, choose P1 setting; then press SET key to achieve return difference value setting P2 ( Temperature Calibration ) This function is for temperature calibration. If detection temperature and the actual temperature is different, then users can apply this function to calibrate P3 ( Delay Start ) This function is for compressor cooling P4 ( Set High-Temperature Alarm Value ) When the actual temperature is higher than this value, the screen will flash and sound an alarm Specifications:- Model XH-W1219 Control Range(C) -50 to +110 Control Precision(C) 0.1 Measuring Input NTC10K Sensor High-Temperature Alarm(C) -49 to +110 Input Voltage (V) 12 Output Type Relay Output 10A (max) Return Difference Setting(C) 0.1 to 30 Delay Starting(min) 0 to 10 Temperature Calibration(C) -10 to 10 Length (mm) 60 Width (mm) 44 Height (mm) 17 Weight (gm) 22 Shipment Dimensions 7 6 2 cm Package Includes : 1 x 12V Digital Red+Green Display Temperature Controller Module 1 xNTC Waterproof Temperature Sensor
