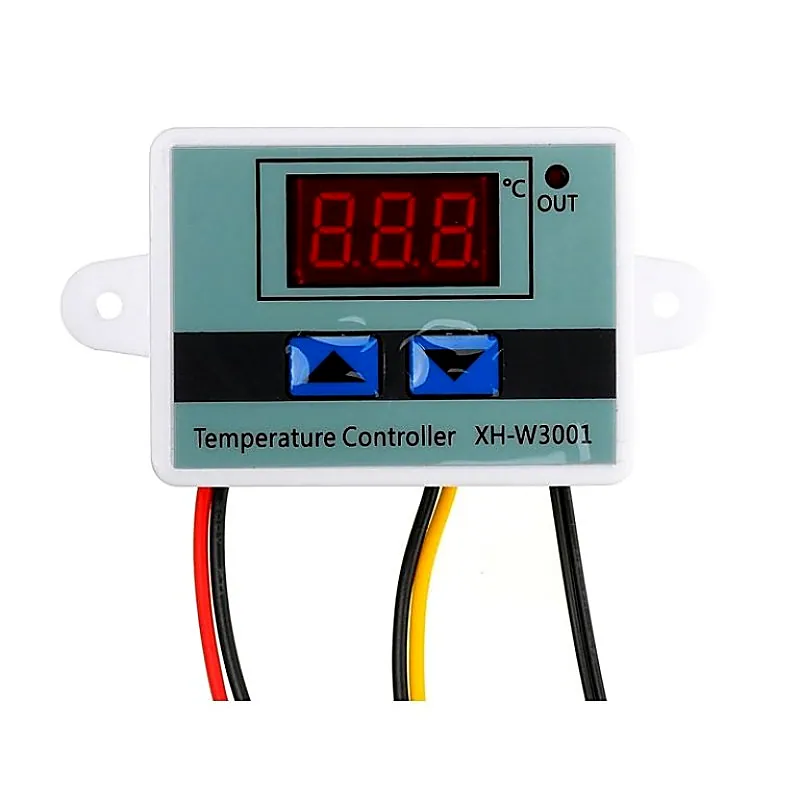

XH-W3001 24V DC 240W Digital Temperature Controller Microcomputer Thermostat Switch

This is XH-W3001 DC 24V 240W Digital Temperature Controller Microcomputer Thermostat Switch. Its a temperature measurement and Controller tool with high accuracy and precision at a very low cost. Furthermore, it offers temperature control range from -50C to +110 C with a precision of 0.1C. The LED display of the switch shows the results clearly, so you can directly install or embed the XH-W3001 in the industrial control equipment panel conveniently. In addition to temperature control, it features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. All the delicate and sensitive components are kept safe in ABS flame retardant housing which is a virulent and environmental protective. Applications of this switch include temperature measurement and display system, refrigeration and heating control, and seafood machines. Button functions: Press UP to show the start temperature button. On long press of the UP button, the display starts flashing, then press the UP or DOWN button and set the beginning of the temperature value Press Down to stop temperature. On long press of the Down button, the display starts flashing, then press the UP or Down button and set to stop the temperature value. Features: Easy to install Output type: Direct output Output capacity: max. 10 A Up key: Press once to display the start temperature. Long press to set start temperature. Down key: Press once to display the stop temperature. Long press to set stop temperature. Temperature setting upper and lower limits Specifications:- Model No. XH-W3001 Rated Current 10 Amp Max. Measurement Input NTC10K Temperature Measuring Range -50C~110C Temperature Control Range -50C~110C Temp Probe Cable Length 1 Meter Power Supply DC12V,DC 24V Load Power 120/240/1500W Dimensions (mm) LxWxH 60 x 45 x 31 Weight (gm) 55 Precision 0.1 Package Includes: 1 x XH-W3001 DC 24V 240W Digital Temperature Controller Microcomputer Thermostat Switch
