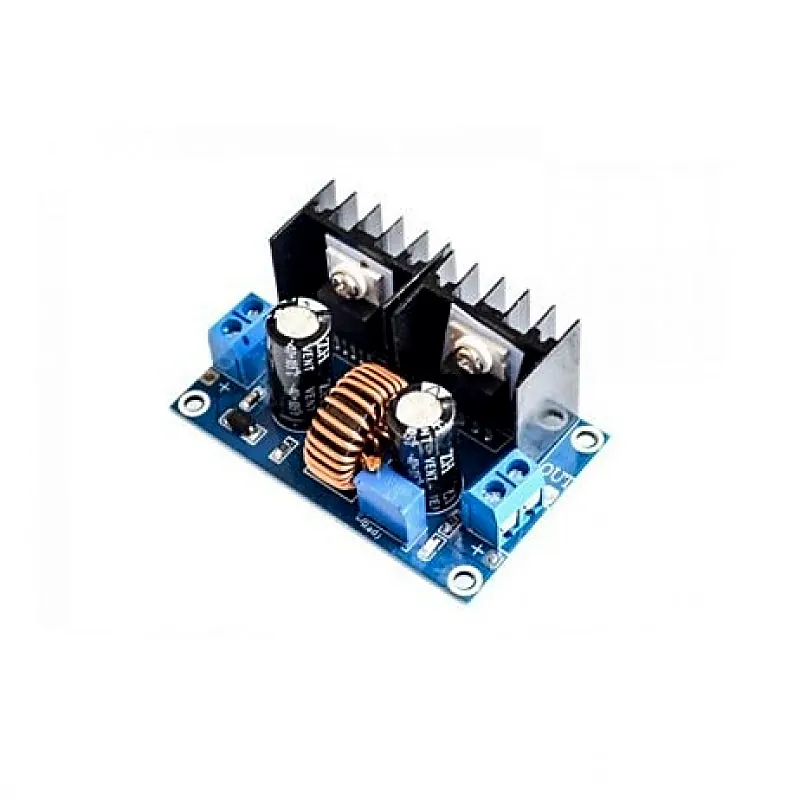

XL4016E1 200W Step Down Power Supply Module

This XL4016E1 200W Step-Down Power Supply Module with voltage rating 4-40VDC to 1.25-36VDC. This module is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC. Features: Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise), Input: IN+ input positive IN- input negative Output: OUT+ output positive OUT- output negative Static power consumption is only about 6mA. Connection: Welding, plus pin can be directly soldered after the PCB. Short circuit protection: current limiting, thermal protection, self-recovery. Non-isolated step-down (BUCK)switching regulator. Short circuit protection: Current limiting, self-recovery Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease) Non-synchronous rectification Package Includes: 1 x XL4016E1 200W Step-Down Power Supply Module Specifications: Input Voltage (V) 4 to 40VDC Output Voltage (V) 1.25 to 36VDC Max Current (A) 8 Maximum Power (W) 200 Efficiency 94% Swithing Frequency (KHz) 180 Length (mm) 61 Width (mm) 41 Height (mm) 27 Weight (gm) 51
