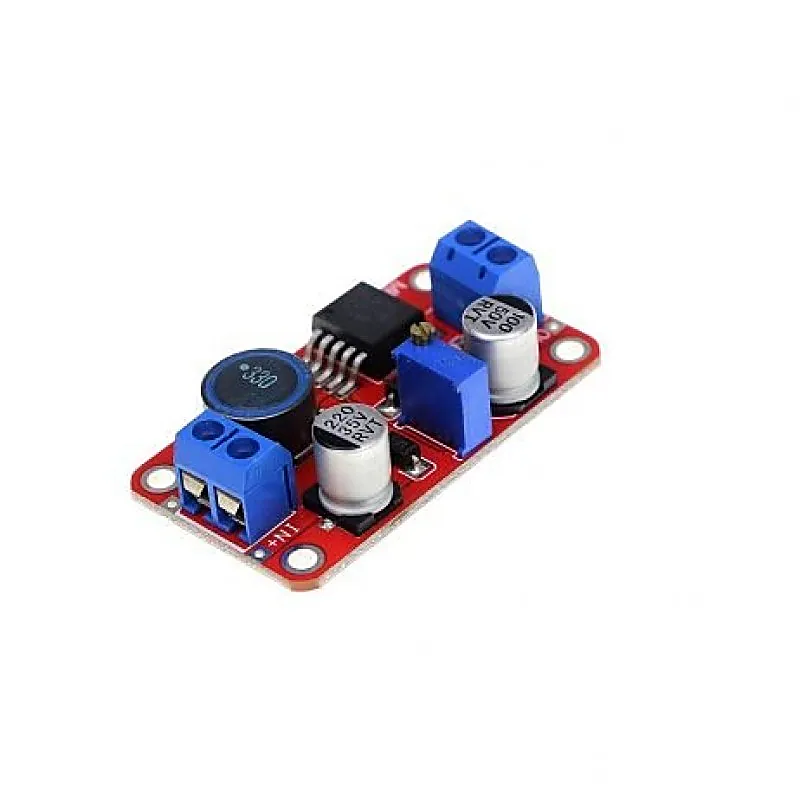

XL6019 DC-DC 5A Adjustable Boost Power Supply Module

DC to DC step up module based on the upgraded XL-Semi XL-6019, offering up to 5A switching current and conversion efficiency of up to 97% Features: 1. With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability. 2. Wide input voltage range, the input voltage up to 35V. 3. Adjustable output voltage, maximum support 40V. 4. The built-in thermal protection, over-current protection full reliability protection circuit, high reliability. 5. System conversion efficiency can achieve 90% above, convenient thermal design. 6. TO263-5 l standard packaging, suitable for booster application within 30W. Specification: Output ripple: 100mv (MAX) Working Temperature: Industrial (-40 C to + 85 C) Voltage regulation: 0.5% MS + -> Positive; IN > Negative; OUT + -> Positive; OUT > Negative Output Voltage: DC 5-40V (Adjustable) Input Current: 5A (MAX) Input Voltage: DC 3-35 V Switching Frequency: 220 kHZ Package Includes:1 pc XL6019 Boost Module Size: Approx 50 x 28 x 13mm (L x W x H) Load regulation: 0.5% Conversion efficiency: 94% (MAX) Package Includes: 1 x XL6019 DC-DC 5A Adjustable Boost Power Supply Module
