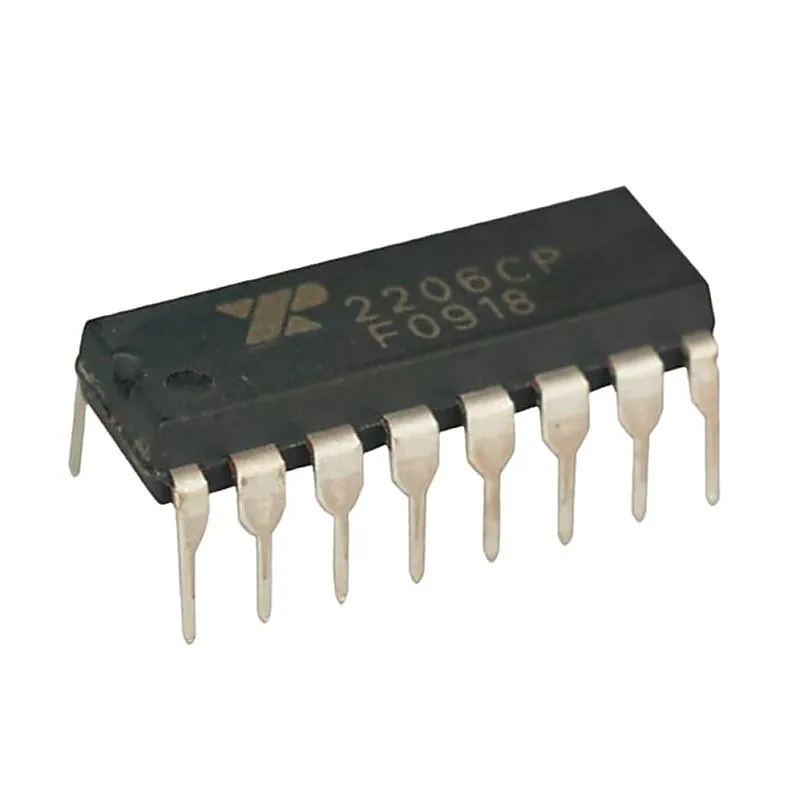

XR2206 IC - Monolithic Function Generator IC

The XR-2206 is a monolithic function generator integrated circuit capable of producing high quality sine, square, triangle, ramp, and pulse wave forms of high-stability and accuracy. The output wave forms can be both amplitude and frequency modulated by an external voltage. Frequency of operation can be selected externally over a range of 0.01Hz to more than 1MHz. The circuit is ideally suited for communications, instrumentation, and function generator applications requiring sinusoidal tone, AM, FM, or FSK generation. It has a typical drift specification of 20ppm/°C. The oscillator frequency can be linearly swept over a 2000:1 frequency range with an external control voltage, while maintaining low distortion. Features:- • Low-Sine Wave Distortion, 0.5%, Typical • Excellent Temperature Stability, 20ppm/°C, Typ. • Wide Sweep Range, 2000:1, Typical • Low-Supply Sensitivity, 0.01%V, Typ. • Linear Amplitude Modulation • TTL Compatible FSK Controls • Wide Supply Range, 10V to 26V • Adjustable Duty Cycle, 1% TO 99% Specifications:- Parameter Specification Power Supply 26V Power Dissipation 750mW Derate Above 25°C 5mW/ °C Total Timing Current 6mA Storage Temperature 65 °C to +150°C Related Document:- XR2206 IC Data Sheet
