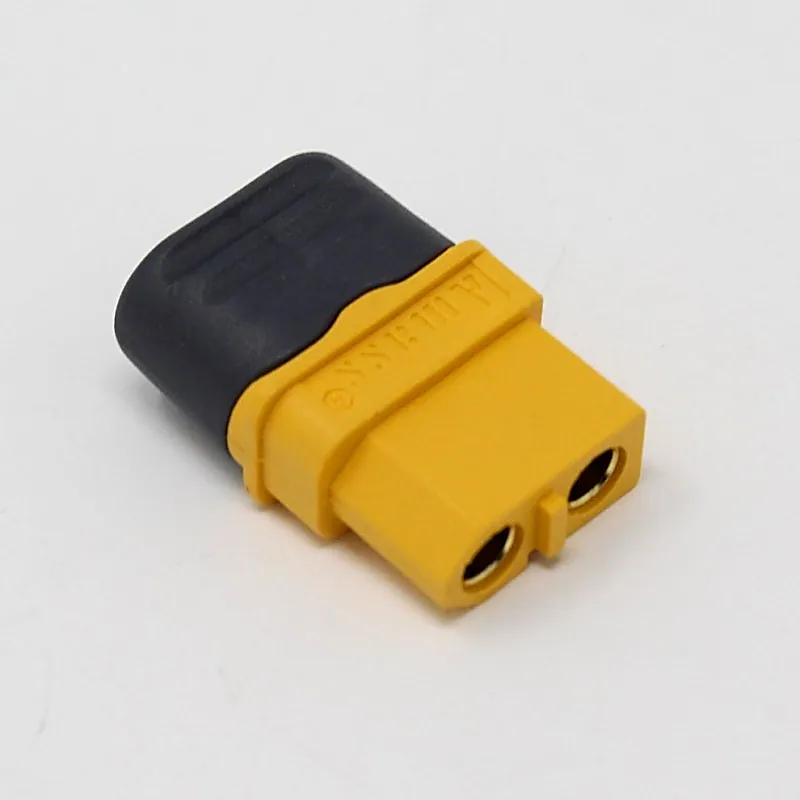

XT60H Connector with Housing - Female

The best battery connectors on the market just got better with the development of the XT60H. Like the original XT60H, this connector is made from high-temp nylon with gold plated connectors so the XT60H continues to provide an excellent high-amp connection for applications up to 65A. The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking Housing with different color provide the protection to the soldered points and make this connector little fancy and that's why H letter is added in XT60. The XT60H is completely compatible with original XT60 connectors so you can use them straight away. Features: Mechanical mounting for cable Electrical mounting soldered Contact plating Gold flash Spatial Orientation Straight Contact Material: Brass Compatible for Wire size up to 12AWG Package Includes: 1 x XT60H Connector with Housing- Female Specifications: Brand Amass Gender Female Rated Operating Voltage (VDC) 500 Current Handling Capacity (A) 60 No. of Contact Points 2 Connector Type XT60H Contact Material Brass Contact Plating Gold flash Metal Connector Size (mm) 4.5 Color Yellow-Gray Weight (gm) 8 Operating Temperature Range (°C) -20 to 120 Flammability Rating UL94V-0 Allowed Wire Size (AWG) 14 ~ 12
