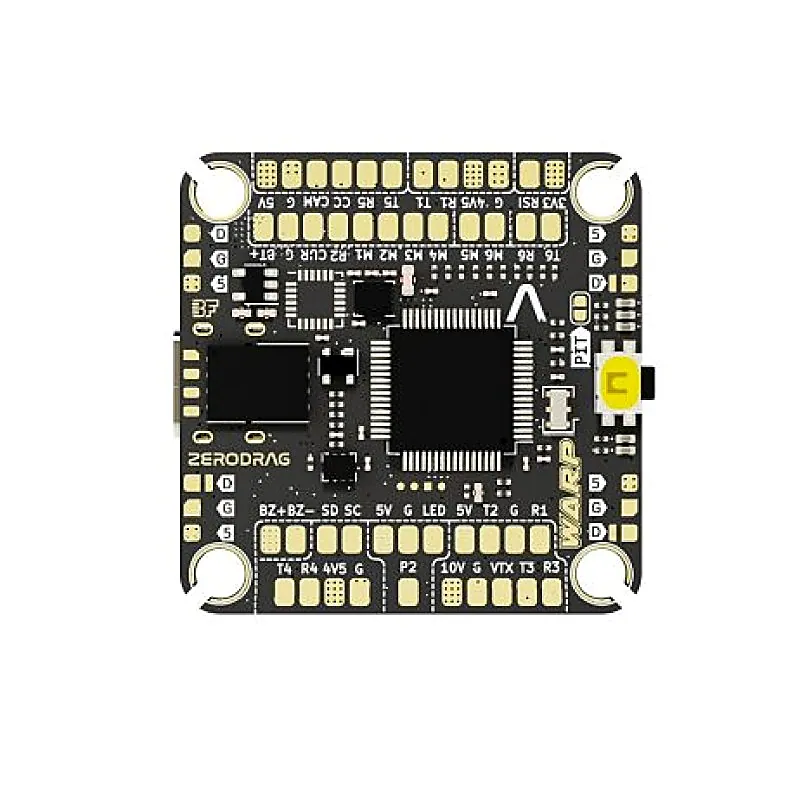

Zerodrag Warp F7 Flight Controller (Made in India)

The ZERODRAG WARP F7 is a cutting-edge flight controller designed for UAVs. It offers advanced capabilities with robust performance powered by the STM32F722 microcontroller, two gyro options (ICM42688P and MPU6000), and an integrated BMP280 barometer. The controller supports a wide range of power inputs (3-6S LiPo) and features a compact form factor (37mm x 38.5mm x 7.1mm), making it an ideal choice for high-precision flight operations. Enhanced with an AT7456E OSD chip, 32MB BlackBox-Flash for flight data logging, and multiple BEC outputs, the ZERODRAG WARP F7 ensures comprehensive functionality for various UAV applications. Its connectivity options include up to 6 UARTs, up to 8 Motor outputs, and I2C pads for additional sensors. The flight controller is optimized for Betaflight firmware and compatible with iNav, providing seamless integration and easy configuration for all your UAV needs. Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product. Features: Integrated BMP280 barometer Compact and lightweight design 32MB BlackBox-Flash for data logging Multiple BEC outputs for various components Six UARTs and I2C pads for enhanced connectivity Designed and Manufactured in India. Used for FPV Drones Autopilot Support Package Includes: 1 x Zerodrag Warp F7 Flight Controller 1 x 6pin SH1.0 GPS Module Cable without Connector on other ends (100mm) 1 x 5pin SH1.0 to 5pin JST1.25 FPV Cam Cable (60mm) 1 x 5pin SH1.0 Analog VTX Cable without connector on other ends 4 x 4pin SH1.0 LED Cable without Connector on other end(150mm) 1 x 4pin SH1.0 Radio Receiver Cable (100mm) 1 x DJI 6pin Cable 80mm 1 x 8pin SH1.0 to 8pin JST1.25 4-in-1 ESC Cable (30mm) 1 x 6pin SH1.0 GPS Module Cable Connector of other end 2 x 5pin SH1.0 Analog VTX Connector of other end 5 x M3*8mm Silicone Grommets 1 x Type-C Silicone Protector Attachments : Download
